SLURRY SAWS

The original wire saws, Takatori multi-sire slurry saws are used for slicing a wide variety of challenging, valuable material. Reduce kerf lose and sub-surface damage and improve yields. Takatori slurry saws are the industry standard for slicing monocrystalline SiC, and are used all over the world to slice glass, ceramics, III-Vs, and more.

ROCKING IMPROVES QUALITY

Takatori wire saws are built from the ground up to rock the wire. This improves the geometry and surface finish of sliced wafers, reducing post-processing and saving valuable material.

CONTACT US
Machine Work size (WxHxL) Wire speed (Max)(m/min) Machine size (WxHxL)

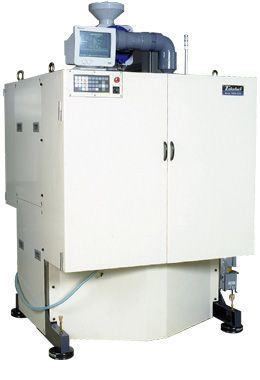

MWS-23N 90x50x100 200 1,218x1,835x1,300mm
MWS-34SN 75x75x105 330 1,350x1,900x1,720mm
MWS-45SN 105x105x130 330 1,350x2,020x1,720mm
MWS-610SN 150x150x270 450 1,850x2,400x2,200mm
MWS-610SD 150x150x270 600 1,954x2,745x2,632mm
MWS-612SD Ф150 x 300 700 1,954x2,745x2,632mm
MWS-812SD Ф200 x 300 700 2,158x2,533x2,632mm
MWS-SiC6 Ф200 x 300 1500 1,860x2,715x4,075mm
MWS-SiCX Ф250 x 300 1500 1,935x2750x4070mm
MWS-SiC-12F Ø350mm (max) x 300mm 1500 1978 x 3074 x 4499

  • Additional Information:

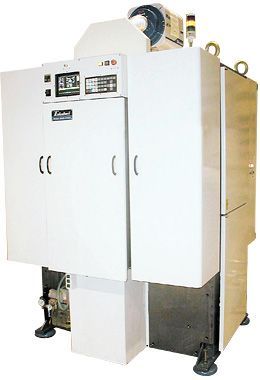

    MWS-34SN:

    Two spindle design, Takatori’s unique rocking system, advanced servo-controlled tensioning system

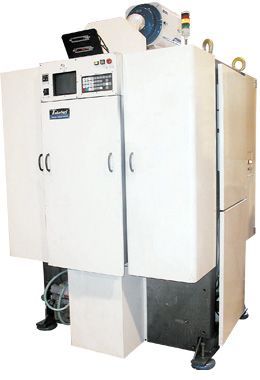

    MWS-45SN:

    Uses three spindle-design to maximize work envelope and larger pitches

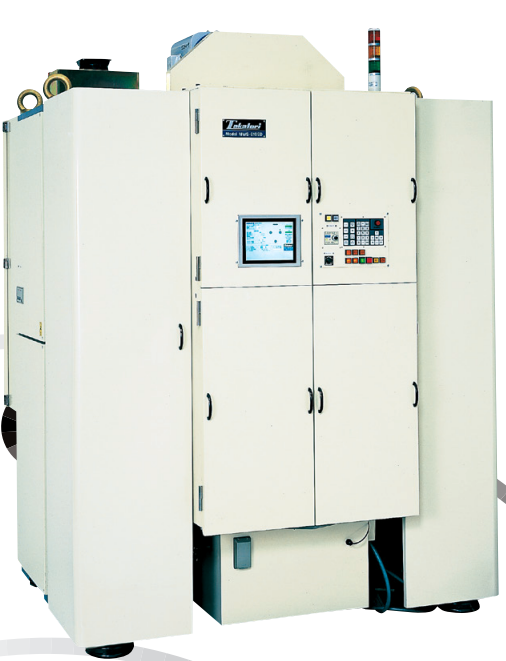

    MWS-610SD:

    Standard down-cut multi wire saw using three work rollers, allowing larger pitches. It features Takatori’s unique rocking system and auto-winding. A rock-solid, industry proven machine for almost any material.

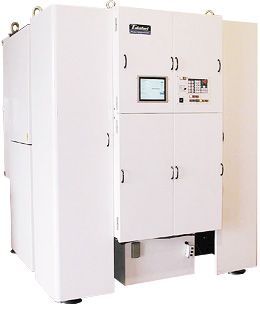

    MWS-612SD:

    Based on the design of MWS-610SD, this machine uses a simplified two spindle to improve rigidity and increase slicing length to 300mm.

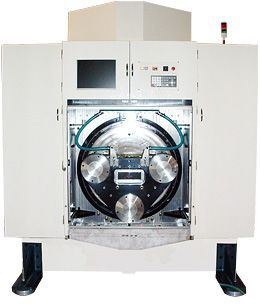

    MWS-812SD:

    Takatori’s largest standard wire saw and even larger work envelope is possible for some applications. This machine can be configured for diamond wire as well. Three spindle system reduces load of each spindle, which results in longer spindle lifetime.


    MWS-SiC6:

    Exclusive multi wire saw for SiC with the use of Ф0.10mm diameter wire. Learn More


    MWS-SiCX:

    Newest multi wire saw for slicing SiC with work size up to 250mm. Learn More

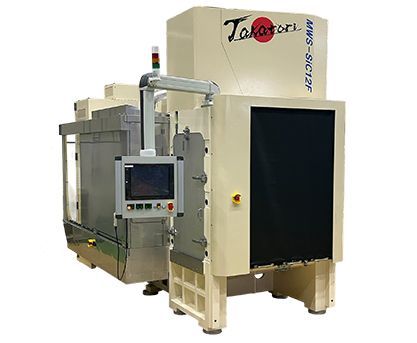

    MWS-SiC12-F:

    -Latest system - up to Ø350mm and 300mm long SiC ingot slicing with slurry or diamond wire (fixed abrasive) processing

    -Structured multi-wire saw with 4 work-rollers

    -Increased pitch capability up to 7.5mm

    -Minimized kerf loss for 300mm SiC ingot slicing

    -Low tension process with wire bend detection and auto traverser functionality
